ZTerminal

Updated December 7, 1999

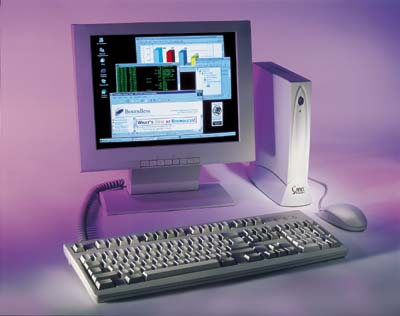

ZTerminal Picture

Based on the Boundless Capio 320 Windows Based Terminal, ZTerminal is an excellent way to connect users to both host-based applications running on AMOS and Unix computers and to Windows applications running on Windows NT Terminal Server Edition. ZTerminal costs about the same as a dumb terminal, yet has the processing capability needed for the Windows world without the maintenance costs of a PC.

To learn more about ZTerminal, please contact one of our ZTERM distributors.

Hardware Specifications

CPU 180 MHz Cyrix MediaGXi™ Processor
Memory 16 MB EDO DRAM (2 SIMM sockets, factory expandable to 128 MB)
256 KB Phoenix BIOS with RomPilot™
8 MB Flash Memory (72 MB Maximum)
Display Color VGA/SVGA compatible
75Hz refresh rate for flicker-free viewing
9" - 21" monitor support
1024 x 768 maximum selectable resolution
16 or 256 colors, 262K color palette
Input PC 101-key (US/UK English) or PC 102-key (International)
Mini-DIN connector
Euro Currency Symbol Support
Mouse Port - PS/2 mini-DIN connector
Network 10BaseT Ethernet standard
RJ-45 connector
Optional 10/100BaseT
Optional Serial/Parallel Card Two RS-232 Serial Ports with DB-9 male connectors
One Bi-directional Centronics compatible Parallel Port with DB-25 female connector
Physical Specifications Height: 1.75" 4.45 cm
Width: 8.75" 22.23 cm
Depth: 9.75" 24.77 cm
Weight: 4.5lbs. 2.04 kg
Power Requirements Internal power supply
AC 90-264 VAC
47-63 Hz
1.0 A max AC input current
Max AC input power: 25 W
Agency Certifications UL, UL1950
FCC Class A
EPA Energy Star
cUL, CSA-C22.2, No. 950-M89
CE Mark
TUV-GS, EN 60950
EN 55022/CISPR 22
EN 50082-1:1997

Software Specifications

Operating System Microsoft Windows CE 2.11
Windows Connectivity Microsoft RDP
Citrix ICA
Host Connectivity ZTERM for Windows CE 2.0
Terminal Emulations Alpha Micro AM62A
Alpha Micro AM62C
ANSI
CY350
Wyse 350
Wyse 50
VT-100
Host Protocols Serial, Serial via Modem, Telnet, SSL Telnet, LPD/LPD for printing
Printer Support PCL 3 Laser and Inkjet, Dot Matrix.
